WHB Series

The WHB Series open type panels are the industry standard for High Plains irrigation engines.

These panels bolt directly to the engine flywheel housing. They include Swichgage protection for low engine oil pressure and high coolant or high oil temperature and have provision to add additional Swichgage instruments, such as a pump discharge pressure, voltage regulator, throttle cable and start button or switch.

WHB SERIES
Specifications Downloads How To Order
X
  • Low Lube Oil Pressure Swichgage instrument:
    • 0-100 psi (0-689 kPa) [0-6.89 bar]
    • 1/8 NPT process connection
  • High Coolant/Oil Temperature Swichgage instrument:
    • 130-250°F (54-121°C)
    • 48 in. (1.2 m) capillary
    • 1/2 NPT process connection
  • 117PH Ammeter: 60-0-60
  • Shipping Weight: 8 lbs. 8 ozs. (3.9 kgs.)
  • Shipping Dimensions: 9.5 x 9 x 5 in. (241 x 229 x 127 mm)

 WARNING: This product may expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information about California Propsition 65, go to www.P65Warnings.ca.gov or visit our California Proposition 65 page.

Additional product documentation can be found on our product support website or by clicking the Help Center button above.

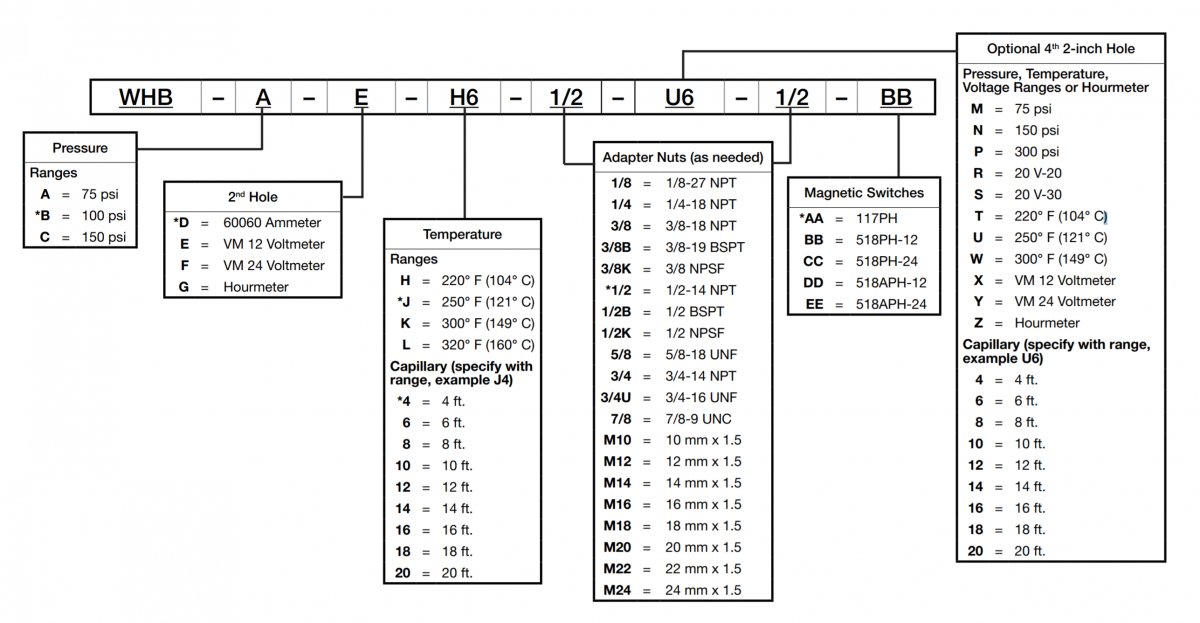

All configurations may not be available. Call your sales representative or Enovation Controls for more information.

  • The asterisk * = Standard Component or Range and is not required for ordering.
  • Always specify the Range with the Capillary choice in the same matrix box, unless they are both marked with an asterisk *, in which case you can leave the matrix box blank.
  • If requirements are outside of the matrix above, order the panel with free-formed text and use the 3050xxxx product number of the base model.
