Murphylink® Series Panels (ML25-ML150)

MurphyLink® Panels are available in a variety of models featuring varying levels of features and functionality to suit your particular application.

The ML Series panels take advantage of Murphy’s PowerView® technology to integrate and display valuable insight from electronic J1939 engines. Panels equipped with a PV101 display give operators more information than traditional gauges by allowing operators to view multiple engine parameters on a single screen. ML series panels come with a variety of display and throttling capabilities, including gauge cutouts on some models that allow you to add critical gauges specific to your application. For applications with emissions requirements, some ML series panels can be equipped with Tier 4 controls. ML series panels are capable of handling sophisticated engine diagnostics as well as basic engine alarm/shutdown with integrated throttle control.

MURPHYLINK® SERIES PANELS (ML25-ML150)

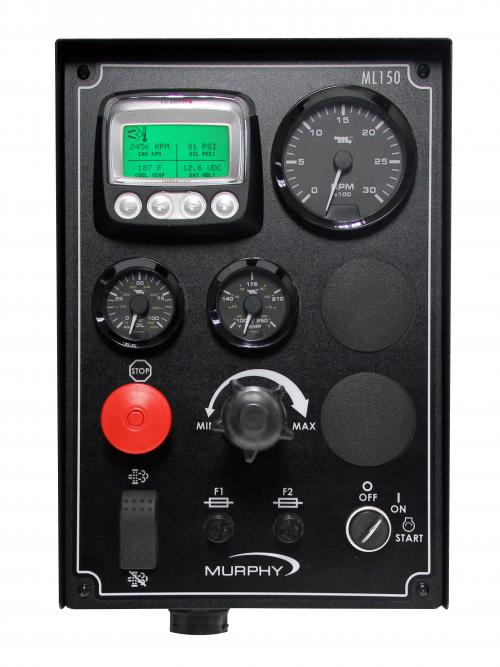

ML150

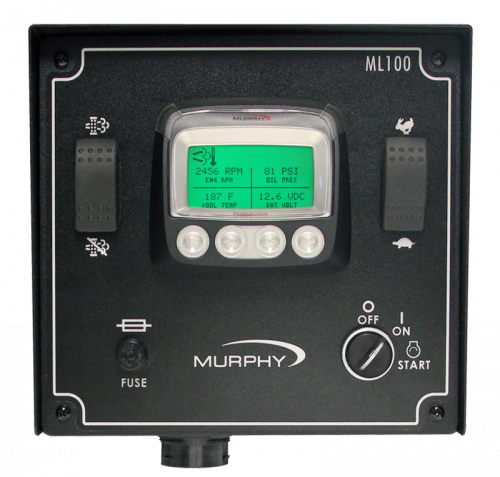

ML100

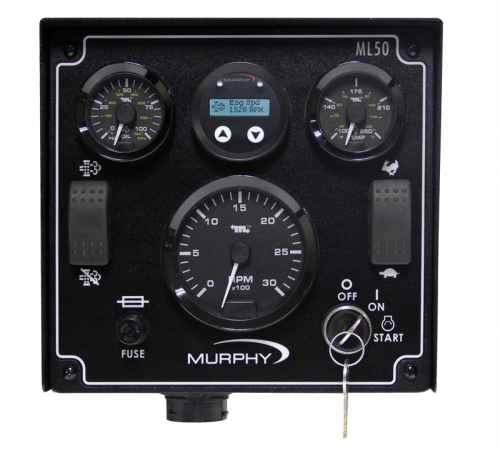

ML50

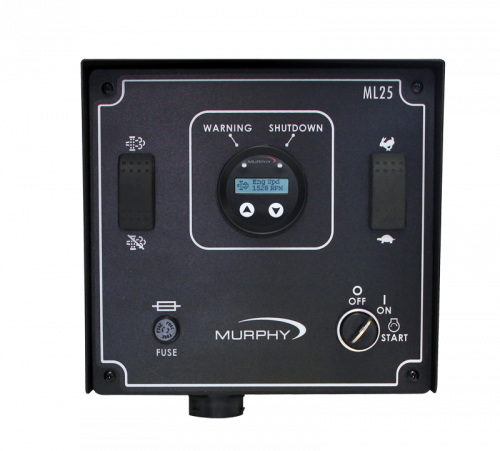

ML25
  • Tier 4 Ready
Comparison Chart Specifications Downloads How To Order
X

ML25

ML50

ML100

ML150

MLC380
Features
  • PowerView® 25 Display
  • Uses SAE J1939 CAN network
  • Increment / Decrement throttle switch
  • Optional Tier 4 regeneration switch
  • Keyswitch
  • Fuse
  • 21-Pin Deutsch connector
  • Murphy standard shock mounts
  • Black powder-coated enclosure
  • Enclosed or Flat Panel
  • PowerView® 25 Display
  • Uses SAE J1939 CAN network
  • PVCAN water temperature and oil pressure gauges
  • Increment / Decrement throttle switch
  • Optional Tier 4 regeneration switch
  • Keyswitch
  • Fuse
  • 21-Pin Deutsch connector
  • Murphy standard shock mounts
  • Black powder-coated enclosure
  • Enclosed or Flat Panel
  • PowerView® 101 Display
  • Uses SAE J1939 CAN network
  • Increment / Decrement throttle switch
  • Optional Tier 4 regeneration switch
  • Keyswitch
  • Fuse
  • 21-Pin Deutsch connector
  • Murphy standard shock mounts
  • Black powder-coated enclosure
  • Enclosed or Flat Panel
  • PowerView® 150 Display
  • Uses SAE J1939 CAN network
  • PVCAN water temperature and oil pressure gauges
  • Space for two additional gages
  • Various throttle options available (Increment / Decrement, Variable, Morse, No Throttle)
  • Optional Tier 4 regeneration switch
  • Keyswitch
  • Two fuses
  • 21-Pin Deutsch connector
  • Murphy standard shock mounts
  • Black powder-coated enclosure
  • Enclosed or Flat Panel
  • PowerView® 380 Display
  • Uses SAE J1939 CAN network
  • Compact in Size
  • Configurable display screens
  • Tier 4 functionality
  • Keyswitch
  • TSC1 Throttling
  • Fuse
  • 21-Pin Deutsch connector & 31 Pin for Additional I/O
  • Murphy standard shock mounts
  • Black powder-coated enclosure
Murphy Industrial Harness Line
The Murphy Industrial Harness (MIH) product line will allow connection from ML Panels to all major engine manufacturer’s engines. For more information on the MIH panel series, please contact our Sales team at
sales@enovationcontrols.com, or call 918.317.4100 and ask for Sales.
  • Operating Voltage:
    • ML25/ML50/ML100: 12/24 VDC (6.5-32VDC Minimum and Maximum Voltage)
    • ML150: 12/24 VDC (8-32VDC Minimum and Maximum Voltage)
    • Operating Current:
      • ML25: 850mA max
      • ML50/ML300: 1.2A max
      • ML100: 1A max
      • ML150: 1.4A max
  • Mounting: 4-.75″ Rubber Isolated Shockmounts
  • Starting/Stopping Method: KeySwitch
  • Display:
    • ML25/ML50 PowerView Model 25
    • ML100/ML150: PowerView Model 101-C
    • Indicating Gauges
      • ML50: Engine Temperature, Engine Oil Pressure, Engine Speed (Analog Tachometer)
  • Indication Lamps: (1) red, (1) amber via display
  • Enclosure Material: Powder coated cold rolled steel
  • Wiring Interface: (1) Deutsch HDP 21pin Connector
  • Throttle Method:
    • ML25/ML50: Rocker Switch (Digital Inputs to ECU)
    • ML100: Rocker Switch (Digital Inputs to ECU) or TSC1 CAN Throttling (via PV101)
    • ML150: Rocker Switch (Digital Inputs to ECU), Hand Throttle (PWM or 0-5V), or TSC1 CAN Throttling (via PV101)
  • Tier 4 Regeneration:
    • ML25/ML50/ML100/ML150: CAN Enabled (via display) or Rocker Switch (via digital input to ECU)
  • Operational Temperature:
    • ML25/ML50: -40° to +70°C (-40° to +158°F)
    • ML100/ML150/ML300: -40° to +85°C (-40° to +185°F)
  • Viewable Temperature:
    • ML25/ML50: -40° to +70°C (-40° to +158°F)
    • ML100/ML150: -29° to +85°C (-20° to +185°F)
  • Storage Temperature:
    • ML25/ML50: -55° to +85°C (-67° to +185°F)
    • ML100/ML150/ML300: -40° to +85°C (-40° to +185°F)

 WARNING: This product may expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information about California Proposition 65, go to www.P65Warnings.ca.gov or visit our California Proposition 65 page.

Additional product documentation can be found on our product support website or by clicking the Help Center button above.

Part Number Model Description Notes
32700190 ML25-FP PV25 flat only, PTO Ramp throttle method, 12/24 VDC Flat panel
32700191 ML25 PV25 enclosed, PTO Ramp throttle method, 12/24 VDC Enclosed panel
32700192 ML25-T4-FP PV25 flat only w/ T4 switch, PTO Ramp T4 Rocker throttle method, 12/24 VDC Flat panel
32700193 ML25-T4 PV25 enclosed w/ T4 switch, PTO Ramp T4 Rocker throttle method, 12/24 VDC Enclosed panel
32700212 ML50-FP PV25 with gages flat only, PTO Ramp throttle method, 12/24 VDC Flat panel
32700213 ML50 PV25 with gages enclosed, PTO Ramp throttle method, 12/24 VDC Flat panel
32700214 ML50-T4-FP PV25 with gages flat only w/ T4 switch, PTO Ramp T4 Rocker throttle method, 12/24 VDC Flat panel
32700215 ML50-T4 PV25 with gages enclosed w/ T4 switch, PTO Ramp T4 Rocker throttle method, 12/24 VDC Enclosed panel
32700198 ML100-FP PV101 Flat only, PTO Ramp throttle Flat panel
32700199 ML100 PV101 Enclosed, PTO Ramp throttle Enclosed panel
32700200 ML100-T4-FP PV101 Flat only w/ T4 switch, PTO Ramp T4 Rocker throttle Flat panel
32700201 ML100-T4 Enclosed w/ T4 switch, PTO Ramp T4 Rocker throttle Enclosed panel
32700202 ML150-FP PV101 Flat only, PTO Ramp throttle Flat panel
32700203 ML150 PV101 Enclosed, PTO Ramp throttle Enclosed panel
32700204 ML150-iT4-FP PV101 Flat only w/ T4 switch, PTO Ramp iT4 Rocker throttle Flat panel
32700205 ML150-iT4 PV101 Enclosed w/ iT4 switch, PTO Ramp iT4 Rocker throttle Enclosed panel
32700216 ML150-ES-MT5V-FP PV101 Flat only Stop Button, Morse 5V, PWM Morse & E-Stop throttle Flat panel
32700217 ML150-ES-MT5V PV101 Enclosed Stop Button, Morse 5V, PWM Morse & E-Stop throttle Enclosed panel
32700206 ML150-iT4-ES-MT5V-FP PV101 Flat only Stop Button, Morse 5V w/ iT4 switch, PWM Morse & E-Stop throttle Flat panel
32700207 ML150-iT4-ES-MT5V PV101 Enclosed Stop Button, Morse 5V w/ iT4 switch, PWM Morse & E-Stop throttle Enclosed panel
32700218 ML150-ES-MTPWM-FP PV101 Flat only Stop Button, Morse PWM, 0-5V Morse & E-Stop throttle Flat panel
32700219 ML150-ES-MTPWM PV101 Enclosed Stop Button, Morse PWM, 0-5V Morse & E-Stop throttle Enclosed panel
32700208 ML150-iT4-ES-MTPWM-FP PV101 Flat only Stop Button, Morse PWM w/ iT4 switch, 0-5V Morse & E-Stop throttle Flat panel
32700209 ML150-iT4-ES-MTPWM PV101 Enclosed Stop Button, Morse PWM w/ iT4 switch, 0-5V Morse & E-Stop throttle Enclosed panel
