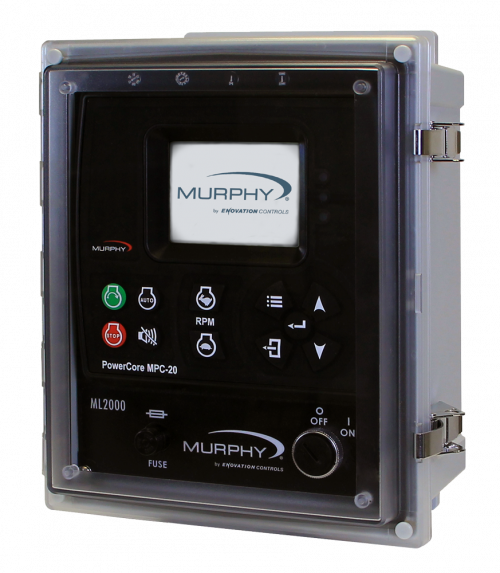

ML2000 Panels

Murphy’s ML2000 control panel series incorporates all the power and functionality of the PowerCore® MPC-20 Controller in a panel solution for most any engine-driven application.

The ML2000 panel series features polycarbonate, metal enclosure or flat panel options and standard harnessing for most major engine manufacturer ECUs. It is built to withstand harsh environments and features an out-of-the-box, fully sealed, powerful all-purpose industrial controller. ML2000 is Tier 4 / Stage IV ready and is easily viewable in full-sun conditions with a large 3.8-inch easy-to-read, monochrome transflective LCD. It is engineered for incredibly easy initial setup and is configurable by the user to meet the most versatile applications, allowing for quick uptime and less headaches on the manufacturing floor or in the field.

  • Tier 4 / Euro Stage IV Ready
Specifications Downloads How to Order
Specifications Drawer:
  • Controller: MPC-20
  • Operating Voltage: 8-32VDC
  • Total Current Consumption:
    • 18W Max without 2 2A High-sides active,
    • 146W Max with 2 2A High-sides active
  • Operating Temperature: -40° to +85°C (-40° to 185°F)
  • Storage Temperature: -40° to +85°C (-40° to 185°F)
  • Enclosure: Powder-coated cold rolled steel or polycarbonate
  • Mating Connectors:
    • 21 Position, Deutsch HDP26-24-21SE
    • 31 Position, Deutsch HDP26-24-31SE
  • Shipping Weight:
    • ML2000: 13 lbs (5.9kg)
    • ML2000-FP: 7 lbs (3.17kg)
    • ML2000-4X: 11 lbs (4.99kg)
  • 13 Outputs:
    • (2) 1A Max Low-side
    • (2) 2A Max High-side
    • (2) 200mA Max 5VDC
    • (1) 0-5VDC Analog
    • (6) 10A Max Form C Relays
  • 15 Inputs:
    • (8) Analog, configurable as Resistive, 0-5VDC or 4-20mA
    • (6) Digital, Configurable as Battery or Ground
    • (1) Frequency, (2Hz - 10KHz, 3.6VAC-120VAC)
  • Communications: CAN (SAE J1939) and RS-485 Modbus

WARNING: This product may expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information about California Propsition 65, go to www.P65Warnings.ca.gov or visit our California Proposition 65 page.

Literature Drawer:

For literature related to the PowerCore MPC-20 controller, please visit this page.

This product can be configured using a free copy of PowerVision for Controllers software. To learn more, visit our Help Center.

Additional product documentation can be found on our product support website or by clicking the Help Center button above.

Part NumberModel and DescriptionNotes
40700499ML2000, Metal Control PanelPanel
40700500ML2000-4X, Polycarbonate, NEMA 4X Control PanelPanel
40700501ML2000-FP, Flat Control PanelPanel
40000479Deutsch Connector Kit, 21-pin & 31-pin, Panel Connector KitAccessories
40000531Deutsch Connector Kit, 21-pin, Panel Connector Kit, Engine OnlyAccessories
78700046Deutsch Connector Kit, 31 -pin, Panel Connector Kit, I/O OnlyAccessories
40000553Harness, ML2000, Mechanical, 10' Blunt, 21 Pos, 10' Mechanical Engine Whip HarnessAccessories
40000565Harness, ML2000, 1/0, 10' Blunt, 31 Pos, 10' 1/0 Whip HarnessAccessories
40000566ML2000 USB Programming Harness, 6-pin to USB Programming HarnessAccessories
