DRC Series

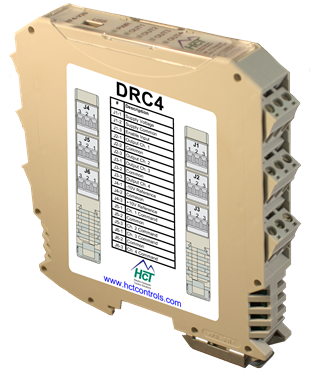

The DRC Series offers versatility and ease of use in a narrow DIN-rail mounted housing.

The DRC is an electronic control module for use with proportional solenoid valves in open loop systems. The module will provide current to the solenoids of the valve in response to various types of signals provided by the control system. Indicators on the front of the module provide an overview of the operating status. System configuration is accomplished through a convenient remote terminal. All settings are stored in permanent memory within the unit. The unit is housed in an attractive, compact enclosure

DRC Series
Specifications How To Order
X
Item DRC
Supply Voltage 9 to 32VDC
Supply Current Isol + 50mA
Output Current “-06A” 600mA or “-12A” 1.2A or “-25A” 2.5A Maximum
Solenoid Resistance 2 Ohms Minimum
Reference Voltages -10V, +10V @ 20mA
Dither Settings 30, 50, 75, 100, 125, 150, 175, 200, 225, 250, 275, 300, 1000 Hz
Analog Input Range “DRC-Vxx”  -10 to 10V, “DRC-Axx” 0 to 20mA
Analog Input Impedance “DRC-Vxx” 38 K Ohms, “DRC-Axx” 250 Ohm
Operating Temperature Range -20 to +70 Deg. C
Enclosure Polyamide
Dimensions Inch: 0.69 W x 4.50 H x 4.30 D mm: 17.5 W x 114.5 H x 109.4 D

 WARNING: This product may expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information about California Propsition 65, go to www.P65Warnings.ca.gov or visit our California Proposition 65 page.

Model Output Channels Input Output
DRC1-V06 1 Voltage Input -10V to +10V 600mA Output
DRC1-V12 1 Voltage Input -10V to +10V 1.2A Output
DRC1-V25 1 Voltage Input -10V to +10V 2.5A Output
DRC1-A06 1 Current Input 0 to 20mA 600mA Output
DRC1-A12 1 Current Input 0 to 20mA 2.5A Output
DRC1-A25 1 Current Input 0 to 20mA 2.5A Output
DRC4-V06 4 Voltage Input -10V to +10V 600mA Output
DRC4-V12 4 Voltage Input -10V to +10V 1.2A Output
DRC4-V25 4 Voltage Input -10V to +10V 2.5A Output
DRC4-A06 4 Current Input 0 to 20mA 600mA Output
DRC4-A12 4 Current Input 0 to 20mA 1.2A Output
DRC4-A25 4 Current Input 0 to 20mA 2.5A Output
