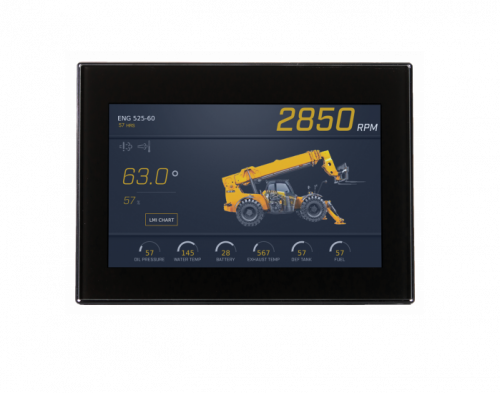

Specifications Drawer:
- Computing
- Processor: Renesas® R-Car M2 with Arm® Cortex®-A15 dual-core processor @ 1.5 GHz (32-bit)
- Storage: 8 GB flash memory
- RAM: 512 MB DDR3-SDRAM
- Display
- Screen Size: 7-inch (178 mm)
- Type: LVDS TFT LCD with LED backlight, 24-bit color
- Resolution: 800 x 480 (WVGA)
- Contrast Ratio: Typ. 600:1
- Brightness: 1000 cd/m²
- Surface: Anti-glare
- Touch Panel: Projected capacitive (PCAP) with glove touch
- Hardware
- Real Time Clock: Li-Ion battery backup (Typ. Lifespan minimum 10 years), non-rechargeable, non-replaceable
- Connectors:
- (2) AMPSEAL 23 pin
- (1) M12 5 pin [Ethernet]
- (1) M12 3 pin (unused)
- (1) USB pigtail
- Video Inputs: (4) NTSC/PAL (dual-channel viewable)
- Communication
- CAN: (2) CAN 2.0B according to ISO-11898-2; J1939 and proprietary messaging
- USB: USB 2.0 full speed host
- Ethernet: 1 X Ethernet 10/100 Base-T
- Electrical
- Operating Voltage:
- 6 – 36 VDC, reverse polarity protected
- Current Draw:
- 12V Max: 1.073A
- 12V Min: 0.762A
- 24V Max: 0.661A
- 24V Min: 0.495A
- Inputs:
- (3) Analog 0–5 VDC, 4-20 mA, resistive, 10-bit resolution
- (5) Discrete digital, active-high
- (1) Frequency in (2Hz–10kHz) 5V pk-pk min, 120V pk-pk max
- Outputs:
- (1) 500 mA switched low-side
- (1) Frequency output (2Hz–3KHz)
- Environmental
- Operating Temperature: -40°C to +85°C (-40°F to +185°F)
- Storage Temperature: -40°C to +85°C (-40°F to +185°F)
- Protection: IP66 and IP69K, front and back, for outdoor use
- Vibration: 7.86 Grms (5–2000Hz), 3 axes
- Shock: ±50G in 3 axes
- EMC/EMI: SAE J1113, ISO 7637-2, ISO 11452, ISO 13766, ISO 16750-2, CISPR 25, EN 13309, CE Mark per 2014/30/EU (EN 61326-1 & EN 60945)
