Smart switching. Rugged build. Limitless control.
Durable switching built for CAN-based systems and total flexibility

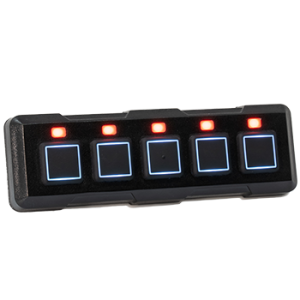

CANKeypad puts you in control with compact, LED-backlit tactile buttons, suitable for any CAN-based application. Use it as a stand-alone switch panel, an annunciator, or alongside an Enovation Controls display.
Easy Configuration & Simple CAN Protocols
Each button supports programmable RGB backlighting and status LEDs with full control of color, brightness, and flash rate, including bar graph capabilities.
Built to last, and tested over 1 million cycles the keypad is IP67 rated with an integrated gasket and mounts to a panel using two M3 bolts. Four color-coded flying leads provide CAN and power connectivity, offering maximum install flexibility.
Elevate Your System with Intelligent, Rugged Switching
If you need a dependable way to manage functions in tough environments, this keypad delivers. Its compact design fits easily into tight spaces, while the responsive buttons and customizable lighting let you tailor it to your specific system needs. Whether it’s part of a larger control setup or working on its own, it offers straightforward integration and long-term reliability. With a sealed build and flexible wiring, it’s made to perform in real-world conditions without added complexity.
Adjust colors, brightness, and flash rate with 24-bit RGB support for over 16 million colors
SAE J1939 compatible with transmit/receive support for both simple and full RGB control
High-impact PBT/PC case and silicon buttons with dual-layer paint and protective topcoat
Supports 6 to 35 VDC with low current draw (5–200mA depending on LED settings)
IP67 sealed front, panel-mounted with two M3 bolts, and rated for –40°F to 185°F
Seamlessly integrates into contemporary equipment, ensuring reliability in any application.
