Hello,

Regarding the DM1 Popup indicator, Murphy standard configuration provides Lamp (color) status as below.

Malfunction Indicator: Amber
Red Lamp Status: Red
Amber Lamp Status: Amber
Protect Lamp Status: Red

As severity should be from the top to bottom, our customer would like to change the popup indicator color as below.

Malfunction Indicator: Red
Red Lamp Status: Red
Amber Lamp Status: Amber
Protect Lamp Status: Green (or Amber)

Configurations related with DM1 have some protection, they cannot change the setting.

Could you advise how to customize the setting?

Thank you.

I think what you are looking for are the Condition Events in the DM1 IconControl group. For example,the Event Amber Lamp Off has a condition CND Amber Lamp Off is true when Warn_Lamp = 0 and the Action is SysApp->Amber Led Off((Empty)). Amber Lamp On, Red Lamp Off and Red Lamp On also have Condition Events that have Actions to output the lamps.

Thank you for your reply.

Please also advise how to change the color of Popup Frame (shown in attached) according to the followings.

Malfunction Indicator: Red
Red Lamp Status: Red
Amber Lamp Status: Yellow
Protect Lamp Status: Green (or Yellow)

Thank you.

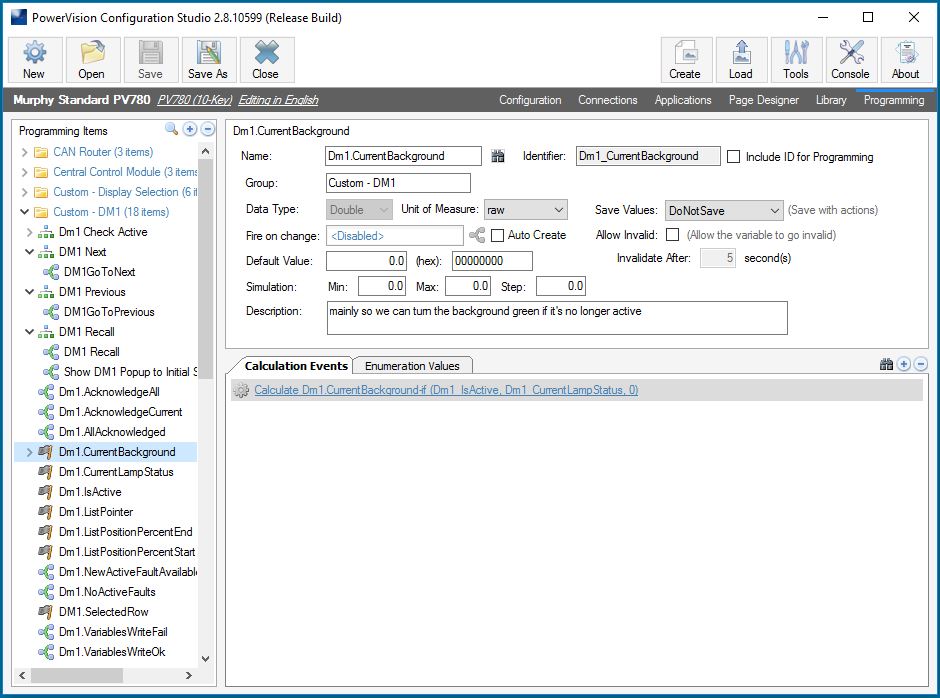

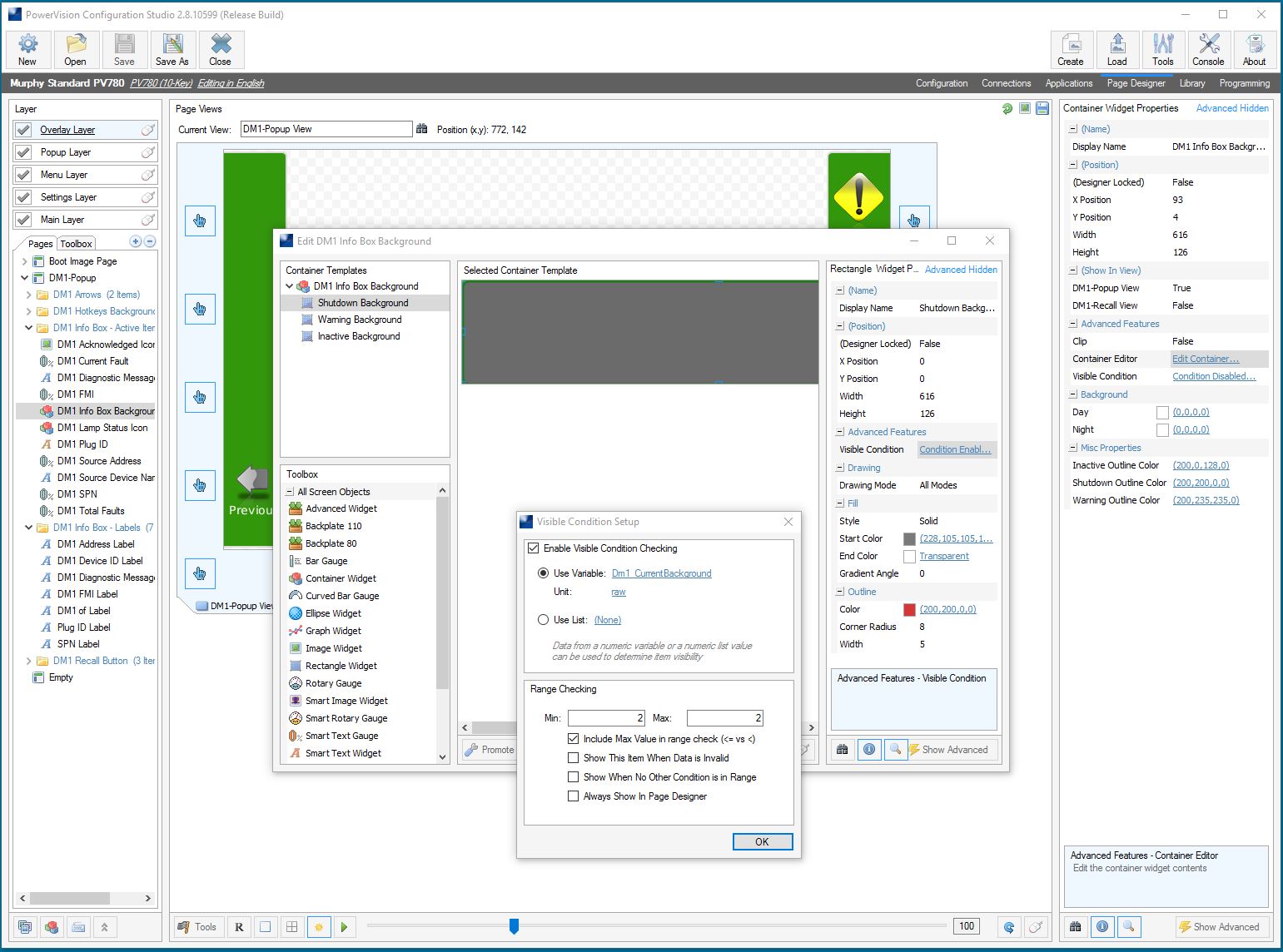

The color of the popup background is selected from the variable Dm1_CurrentBackground. The Range Checking Min and Max values can be changed to select the background color you like.
The Dm1_CurrentBackground variable is set from the Dm1_CurrentLampStatus variable.

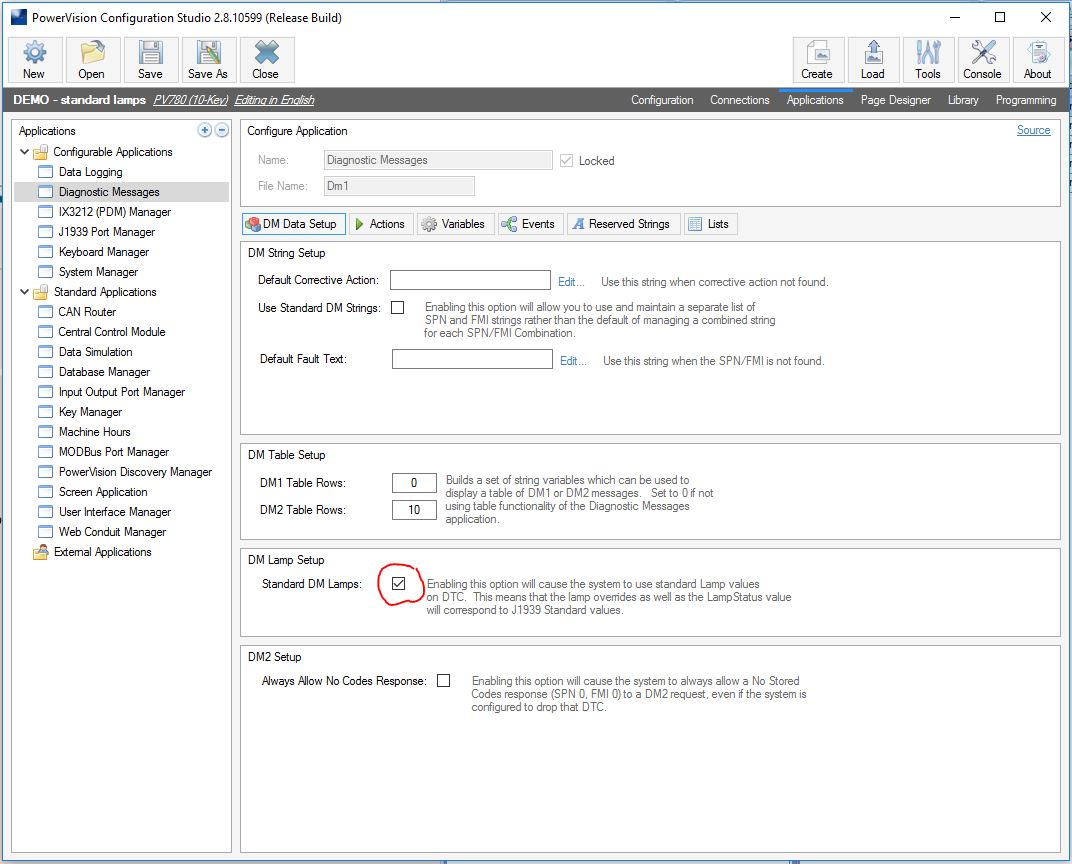

To actually change the configuration where you can handle the malfunction and protect lamps differently, the configuration will have to be changed to use Standard DM Lamps in the Diagnostic Messages application.
This script sets the Dm1_CurrentBackground variable according to the value of the current lamp status. Change where the event Calculate Dm1.CurrentBackground is used and change it to the Calculate Current Background script.
Green borders and backgrounds can be copied and a new current background value made for the protect lamp.

Thank you for the detailed explanation and Demo program.
