Sorry to post an issue for what I would consider something simple (and which has been discussed numerous times on this forum). I am having issues updating the RTC on the HV700BPBlackLabel product.

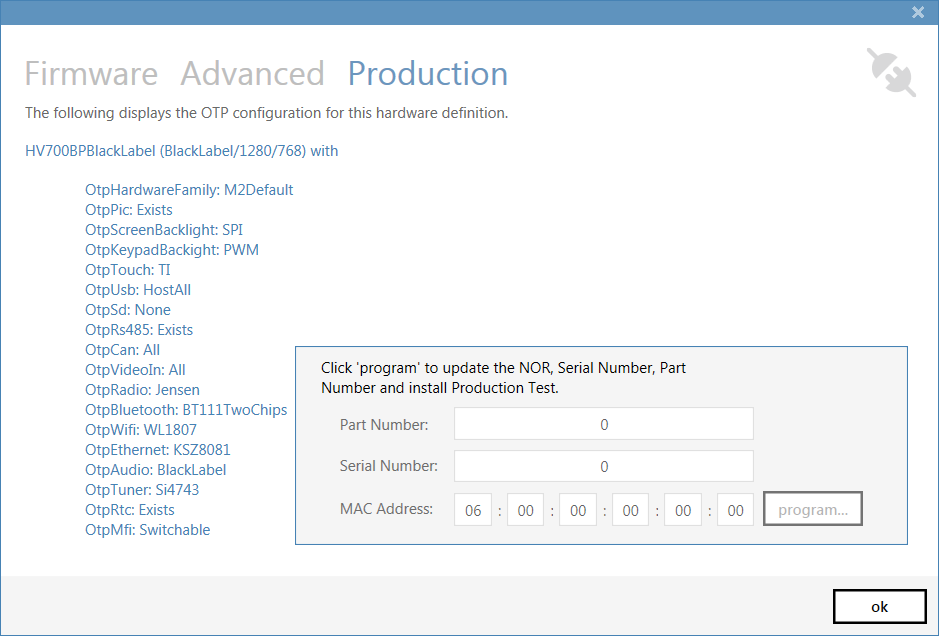

1. The Hardware indicates that a RTC exists on the platform
2. After working on this for a while -- I created two buttons. The first button loads the data into the RealTimeClock.Set.XXX variables. The second button fires the System_Update_Clock action. Here are my two functions written in script (pretty simple)
3. The following screenshot shows the results after I have loaded the data in the RealTimeClock.Set.XXX parameters. The data was loaded properly so it is just a simple matter of updating the clock. When I do this -- the display resets and comes back up online. The RTC is set at 2000/01/01 00:00 so my update did not work.
We plan on doing some significant data logging with this product so having an accurate RTC value is required.

Ron Roth
EControls, LLC

1. Powervision Version 2.9.21035
2. Hardware: HV700BPBlackLabel
3. Operating System: Windows 7 64 bit

There are a few possibilities. The marine versions of the displays do not have a real time clock. The RTC exists flags were set early on even if there was not a RTC. I'm going to email you a link for the latest PowerVision and a firmware update to try. The developers told me that they just recently put the RTC code in.

This issue was corrected with your update! Thank you for the quick response.

Ron
