Hi,
how can the LED's (red / amber) be lit on / off directly on the PV380?
I've searched for a variable which can be used to control the LED's but I didn't found anything.
Any help would be appreciated, thanks.
PV380 (red / amber) LED control
- broesch
- Posts: 10
- Joined: Thu Jun 02, 2016 5:07 am
- boyce
- Enovation Controls Development
- Posts: 322
- Joined: Wed Sep 08, 2010 5:09 pm
Re: PV380 (red / amber) LED control

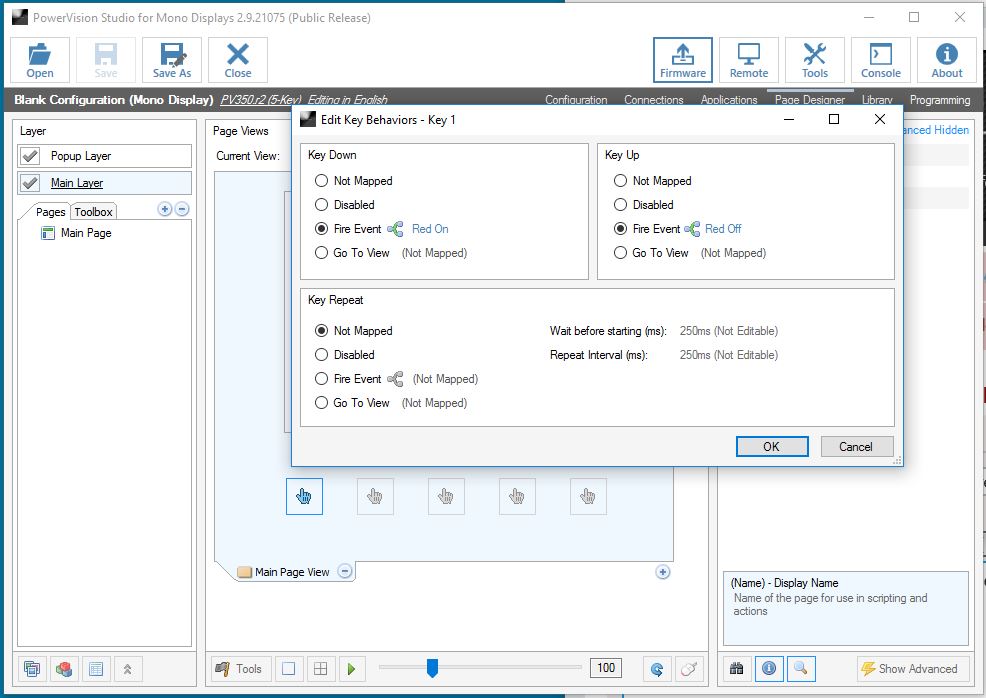

The LEDs are controlled by Actions of the SysApp application. This defines 2 events to turn on the Red LED and off.
Button 1 down turns on the Red LED and button up turns it off.
- led1.JPG (88.4 KiB) Viewed 72 times
- led2.JPG (99.87 KiB) Viewed 72 times
Boyce Schrack
Enovation Controls
Enovation Controls
- broesch
- Posts: 10
- Joined: Thu Jun 02, 2016 5:07 am
Re: PV380 (red / amber) LED control
Many thanks for the example and information!
