20 ms timer

verschuren · Post by **verschuren** » Wed Aug 02, 2017 9:35 am

Hi,

Silly question, but I need a 20 ms timer. Is this possible? The high speed is 10 ms only and the standard timer starts at 50 ms.

Any help is appreciated!

Mario

Post by **boyce** » Wed Aug 02, 2017 11:12 am

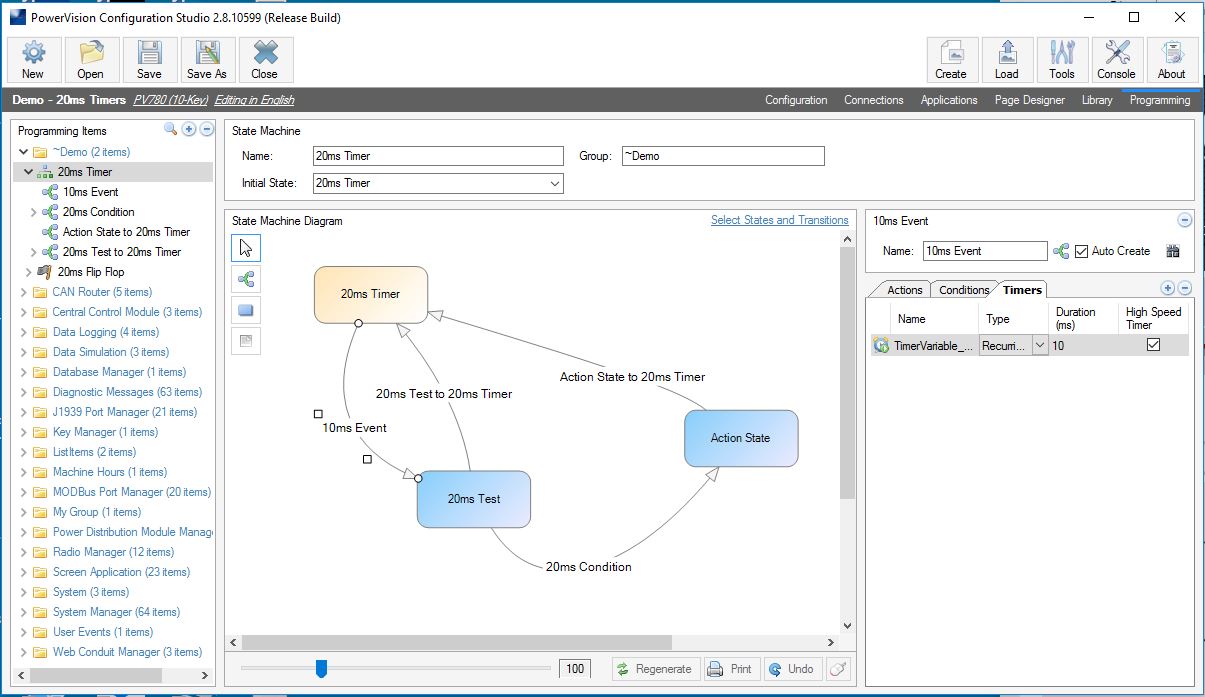

Should be easy, right? I tried to get a 20ms timer with a state machine.

Using the high speed 10ms timer. Update the flip-flop on the way.

: 20ms1.JPG (124.73 KiB) Viewed 71 times

: 20ms2.JPG (121.04 KiB) Viewed 71 times

Fire the condition events that will branch to do some action or return.

: 20ms3.JPG (125.95 KiB) Viewed 71 times

: 20ms4.JPG (119.39 KiB) Viewed 71 times

: 20ms5.JPG (120 KiB) Viewed 71 times

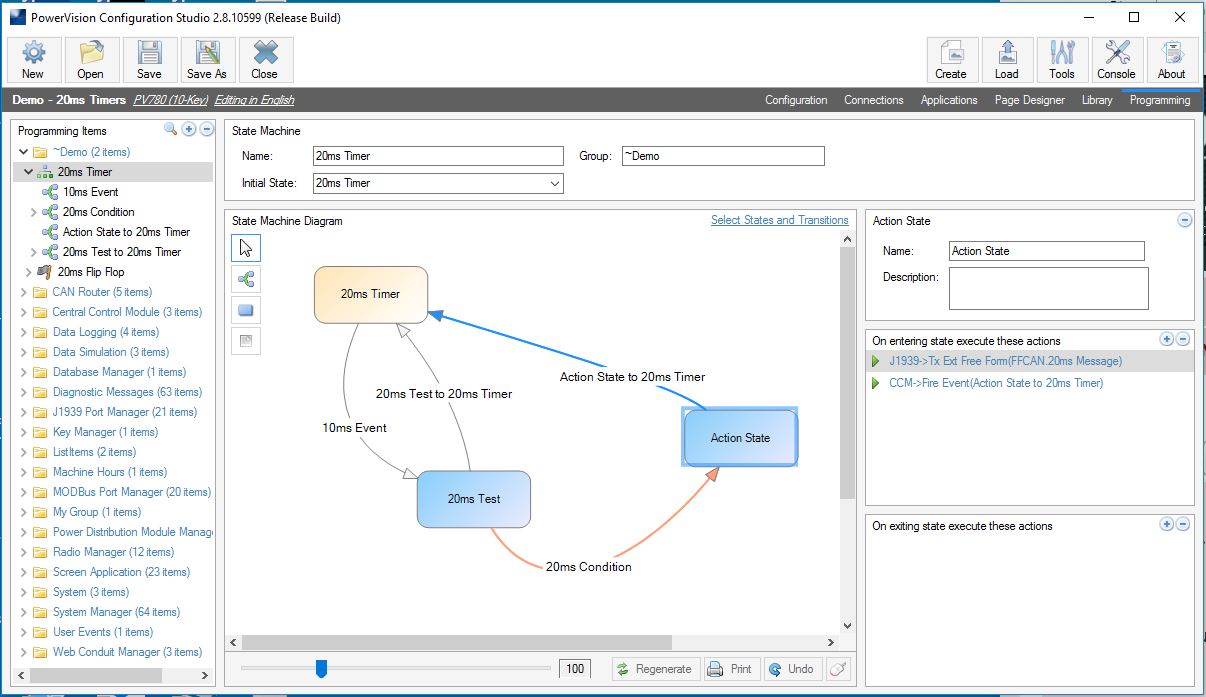

Transmitting a Free Form message and return to beginning.

: 20ms6.JPG (125.27 KiB) Viewed 71 times

This looks like it works okay. There is probably to nice trick that would make this easier.

Demo - 20ms Timers.zip: (689.83 KiB) Downloaded 7 times

verschuren · Post by **verschuren** » Wed Aug 02, 2017 12:32 pm

Thank you!

I will try that out.

verschuren · Post by **verschuren** » Wed Aug 02, 2017 2:23 pm

It works great! Thank you Boyce.
