Tattletale® Annunciators and Magnetic Switches

Tattletale annunciators and magnetic switches are the nerve centers that translate Swichgage® contact operations into decisions and operate the alarm or shutdown device.

These switches are the electrical load carrying devices for the alarm or shutdown device. Tattletale annunciators indicate which monitored function failed leading to the alarm or shutdown magnetic switches do not. Magnetic switches operate basically as a latching relay.

Specifications Downloads How to Order
X
Specifications Drawer:

Specifications

Coil Voltage:

12 volt

  • 518PH
  • 518APH
  • 518E
  • 520APH
  • 521PH
  • 760A(‡)
  • 761APH
  • R129A

24 volt

  • 518PH
  • 518APH
  • 520APH
  • 521PH
  • 760A(‡)
  • 761APH
  • R129A

12/24 volt*

  • 117
  • 117PH
  • MS2110
  • MS2111
  • 822PH
  • ETS30S

120 VAC

  • MS2100

Magneto ignition

  • MS2120
  • M4264-1

CD ignition

  • MS2100
  • M4264-1

*Multi-voltage AC or DC systems.  See circuit desriptions below.
‡ Does not latch after shutdown signal clears, automatically resets.



Coil Resistances (OHMS):

Product - Coil Resistance in OHMS, or coil and resistor
117 - 18
117PH - 18
MS2100 - 288
MS2110 - 18
MS2111 - 72
MS2120 - 0.5
518PH - 339/678 for 12/24
518APH - 339/678 for 12/24
518E - 339/678 for 12/24
520APH - 339/618 for 12/24
521PH - 339/678 for 12/24
760A - 90/190 for 12/24
761APH - 18
822PH - 30
R129A - 90/190 for 12/24

Contacts (see Note 2 below):

NCH

  • 117
  • 117PH
  • MS2100 (A)
  • MS2110 (A)
  • MS2111 (A)
  • 518PH
  • 518APH
  • 518E
  • 520APH
  • 760A
  • 761APH
  • 822PH

NOH

  • MS2100 (A)
  • MS2110 (A)
  • MS2111 (A)
  • 518APH
  • 518E
  • 520APH
  • 760A
  • 761APH
  • 822PH
  • ETS30S

NCG

  • MS2120 (B)
  • M4264-1 (B)
  • R129A (B)

NOG

  • MS2120 (B)
  • 521PH
  • M4264-1 (B)
  • R129A (B)

(A): Dry contacts normally wired in hot circuit.
(B): Dry contacts normally wired in ground circuit.



Latch Type:

Energize to trip

  • 117
  • 117PH
  • MS2100
  • MS2110
  • MS2111
  • MS2120
  • 760A
  • 761APH
  • 822PH
  • M4264-1
  • R129A
  • ETS30S

Energize to latch

  • 518PH
  • 518APH
  • 518E
  • 520APH
  • 521PH



Reset Type:

Manual indicating

  • 117PH
  • MS2100
  • MS2110
  • MS2111
  • MS2120
  • 518PH
  • 518APH
  • 518E
  • 520APH
  • 521PH
  • 761APH
  • 822PH
  • M4264-1

Manual non-indicating

  • 117

Electric non-indicating

  • 760A
  • R129A
  • ETS30S



Time Delay

Before shutdown

  • 520APH
  • 760A
  • 761APH

Start only

  • 760A
  • 761APH

After shutdown

  • ETS30S



NOTES:
The information above indicates features/configurations available for each model.

1. Coil Voltage - Coils are specific voltage rated or multiple voltage rated.
2. Contacts - This is the control circuit output. In the lathed position the NCH contact has a "hot" output. In the latched position, the NCG has a "grounded" output; in the tripped position, the NOG has a "grounded" output.
3. Latch Type - Refers to whether the magnetic coil is momentraily energized to trip or requires continuous power in the operating mode and de-energizes to trip.
4. Reset Type - Refers to manual or electric reset; manual indicating type is a TATTLETALE.
5. Time Delay - Indicates operation of the time delay.

WARNING: This product can expose you to chemicals including lead, which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information about California Propsition 65, go to www.P65Warnings.ca.gov or visit our California Proposition 65 page.

Literature Drawer:

Additional product documentation can be found on our product support website or by clicking the Help Center button above.

Backup Method - Rich Text:

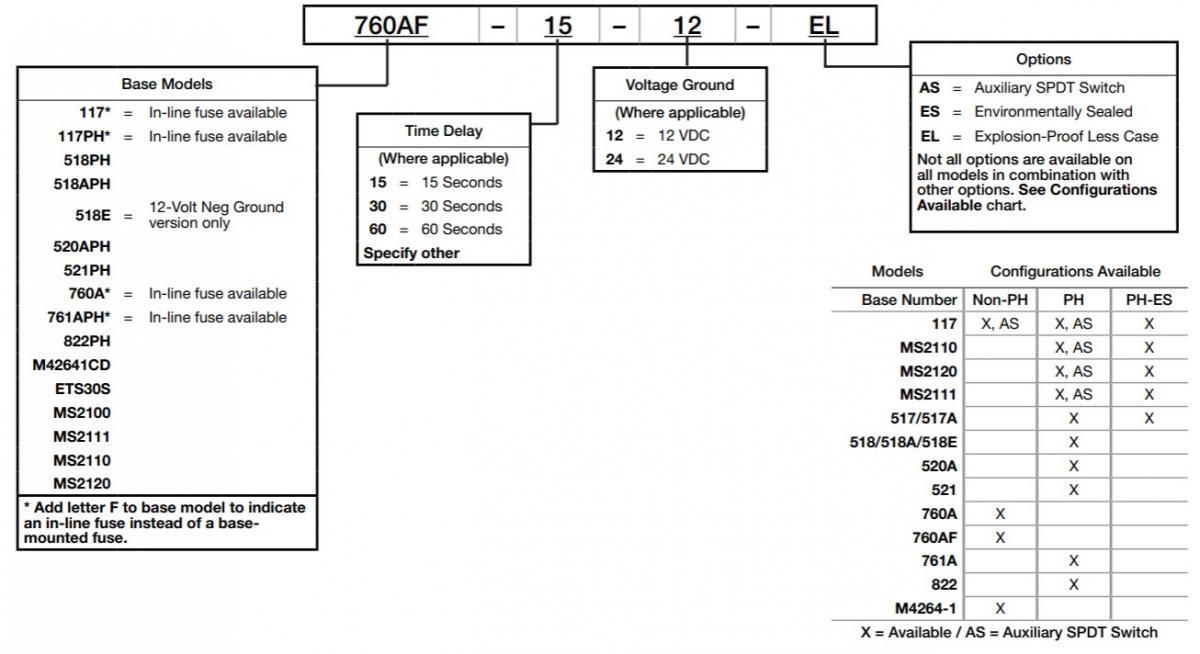

Options listed below. All configurations may not be available. Call your sales representative or Enovation Controls for more information. See sales bulletin for additional details and accessories.
