PXT-K Series

The PXT-K Series pressure transmitters are state-of-the-art instruments providing 4-20 mA output.

Each Piezoresistive Pressure Transmitter contains a transducer comprised of a piezoresistive silicon chip mounted on a glass-metal feed-through header welded into a stainless steel housing and filled with silicone oil. The very thin laser-welded stainless steel isolation-diaphragm completes the front side. Media pressure is transferred from the stainless steel isolation-diaphragm via the oil inside the cell to the silicon measuring chip. This construction, combined with the advanced internal signal conditioning circuitry, results in a rugged instrument with extremely small temperature error and class-leading EMI/RFI resistance. The enclosure and all wetted parts are made of 316L stainless steel to comply with NACE MR0175. PXT-K Series Pressure Transmitters can be used in applications such as compressors, engines, process control, liquid level and pumps.

  • CE (European Conformity) mark
  • Ex mark
  • CSA mark (for Canada and the United States)
Specifications Downloads How to Order
X
Specifications Drawer:
  • Operating Pressure Range: See How to Order under the PXT-K Series Model Number Matrix.
  • Operating Temperature: -40 to 180° F (-40 to 82° C)
  • Compensated Temp Range: -20 to 160° F (-29 to 71° C)

Physical Characteristics

  • Process Connection: 1/4 NPT female with 7/8” Hex nut
  • Electrical Connection (PXT-K-XXX): 1/2” NPT male conduit connection with 60” long cable, vented
  • Enclosure: NEMA 4/IP65 or better
  • Body: 316L stainless steel. Complies with NACE MR0175
  • Wetted Parts: 316L stainless steel
  • Environmental Effect (Humidity): No effect for 0-95%, non-condensing
  • Mounting: Transmitter can be installed in any axis. Transmitter position has negligible effect on performance as long as it is perpendicular to the flow being monitored.
  • Shock Resistance: 1000g per IEC 60068-2-6 (Mechanical Shock)
  • Vibration Resistance: 20G per IEC 60068-2-6 (Vibration under resonance)
  • Wiring Protection: Protected against reverse polarity and short circuit, 48 VDC Maximum
  • Supply Voltage: 8 - 30 VDC (Typically 24 VDC)
  • Transmitter Output: 4-20mA, two wire configurations with load characteristics
  • Insulation: Greater than 10MΩ @ 300 VDC
  • Electromagnetic Compatibility (EMC): Standards; EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61326-2-3:2006
  • Voltage Surge/Spike Protection: Protection against a 600 volt spike per IEC 60-2
  • Shipping Weight: 6.5 ounces

Applicable Standards

  • NACE MR0175
    • Compliant with the requirements
  • CSA (c/us):
    • Class I / II / III, Div 1, Groups A-F T4
    • Class I / II / III, Div 2, Groups A-D,F,G T4
  • ATEX:
    • IBExU 10 ATEX 1124 X
    • II 1G Ex ia IIC T6-T4
    • II 3G Ex nA IIC T6

WARNING: This product can expose you to chemicals including lead, which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information about California Propsition 65, go to www.P65Warnings.ca.gov or visit our California Proposition 65 page.

Literature Drawer:

Additional product documentation can be found on our product support website or by clicking the Help Center button above.

Part NumberModelDescription
05707730PXT-K-30V30WC-30V30WC
05707731PXT-K-30V30-30V30 PSIG
05707732PXT-K-30V100-30V100
05707733PXT-K-150-15 PSIG
05707734PXT-K-600-60 PSIG
05707735PXT-K-1000-100 PSIG
05707736PXT-K-2000-200 PSIG
05707737PXT-K-3000-300 PSIG
05707738PXT-K-4000-400 PSIG
05707739PXT-K-6000-600 PSIG
05707740PXT-K-10000-1000 PSIG
05707741PXT-K-20000-2000 PSIG
05707742PXT-K-30000-3000 PSIG
05707743PXT-K-50000-5000 PSIG
05707744PXT-K-60000-6000 PSIG
05707745PXT-K-100000-10000 PSIG
05707637PXT-KM-30V30WC-30V30WC
05707638PXT-KM-30V30-30V30 PSIG
05707639PXT-KM-30V100-30V100 PSIG
05707640PXT-KM-150-15 PSIG

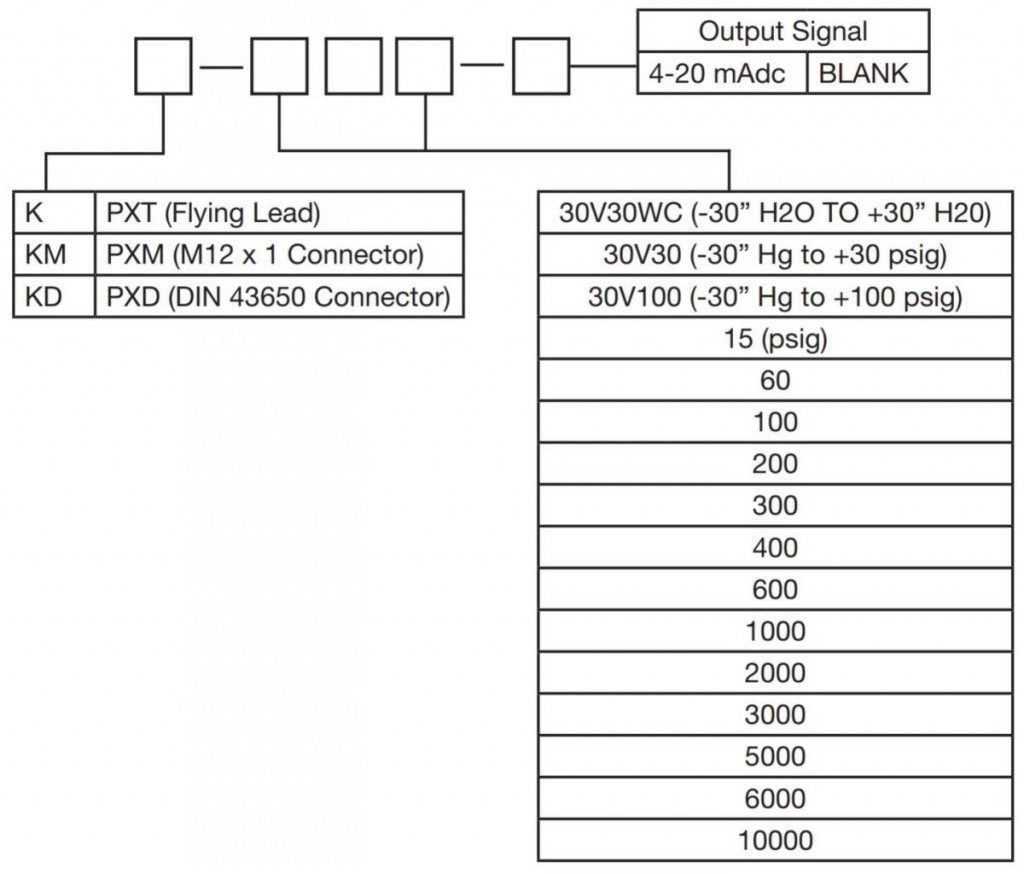

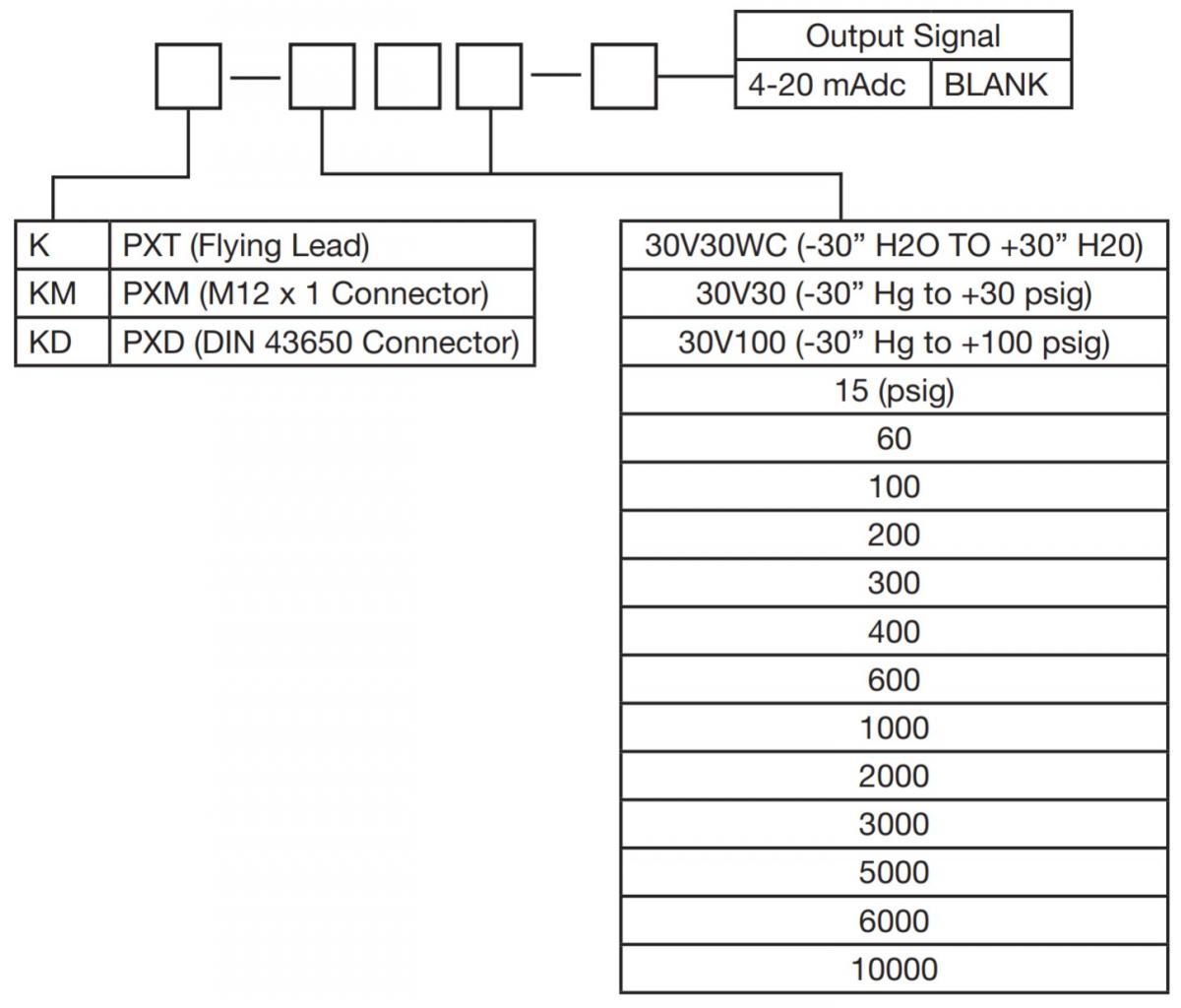

Murphy two wire Pressure Transmitter with Flying Lead Connection, 0-600psig range, 4-20mAdc output. If no digit follows the pressure range, it is automatically a 4-20mAdc output signal. See chart for options explanation:

Note: All configurations may not be available. Call your sales representative or Enovation Controls for more information
