PowerView® Gauges

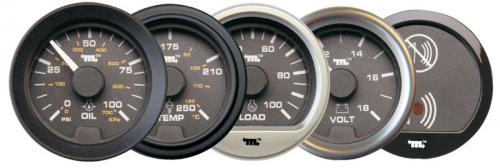

PowerView Gauges are a series of intelligent gauges designed to display easy-to-read information transmitted over the device network.

The major feature of PowerView gauges are their balance between design and functionality. These modern gauges offer a selection of lens and bezel styles and colors. They are available for standard 2 1/6-inch (52mm) and 3 3/8-inch (86mm) diameter hole sizes. In addition, its polycarbonate/polyester alloy cases incorporate a D shape allowing panel cutouts that eliminate gauge rotation during installation. PVCAN gauges are designed to be wired directly to the J1939 CAN bus without the need of another device driving them. PVA/PVM gauges communicate with the PowerView via a single RS485 twisted pair MODBUS RTU serial link. PowerView gauges also include features such as a smooth stepper motor operation for the 270-degree sweep pointer, an environmentally sealed case with molded connectors and green LED backlighting.

PVA gauges
PVM gauges
Specifications Downloads How to Order
X
Specifications Drawer:
  • PVA Gauges
    • Power Supply Input: 12/24V (8-32VDC min/max voltage)
    • Power Supply Operating Current: (@ 14VDC) =
      • PVA20, PVA35: 28 mA minimum: 52 mA maximum
      • PVAA20: 19 ma minimum; 46 mA maximum
    • Backlight Maximum Current: 24 mA (Not valid for PVAA20)
    • Input: RS485 MODBUS RTU Data
    • Output: Analog readout
    • Operating Temperature: -40°F to 185°F (-40°C to 85°C)
    • Storage Temperature: -76°F to 185°F (-60°C to 85°C)
    • Dial: White text over black background
    • Indicating Pointer: Stepper motor Operation with 270° sweep
    • Gage Accuracy: Better than ± 1% of full scale
    • Environmentally Sealed Enclosure:
      • Sealing: IP68, ±5 psi (±34.4 kPa)
      • Case Materials: Polycarbonate/Polyester (PC+PBT)
      • Clamp Materials: Polyester (PBT)
      • Lens Material: Polycarbonate
      • Bezel Material: ABS
    • Maximum Panel Thickness: 3/8 inch (9.6mm)
    • Connectors: 6-pin Deutsch DT06 Series
    • The following items apply only to PVAA20
      • Sound Output Level: 90 dB @ 30cm
      • Relay Rated Load: 0.5A, 125VAC: 1A, 24VDC
      • Relay Maximum Switching Capacity: 62.5VA, 30W
      • External Audible Alarm Output: 28VDC, 30 mA maximumcurrent sink
      • Temporary Silence Button: Charge transfer technology
  • PVCAN Gauges
    • Power Supply Input Voltage: 12/24V (8-32VDC Minimum and Maximum Voltage)
    • Power Supply Operating Current:Typically 70mA
    • Backlight Maximum Current: 45mA
    • Input: CAN (SAE J1939)
    • Operating Temperatures: -40°F to185°F (-40°C to 85°C)
    • Storage Temperatures: -76°F to 185°F(-60°C to 85°C)
    • Dial: White numerals over black background
    • Gage Accuracy: Better than ±1% of fullscale
    • Environmentally Sealed Enclosure:IP68: ±5PSI (±34.4kPa).
    • Case Material: Polycarbonate/Polyester(PC+PBT)
    • Clamp Material: Polyester (PBT)
    • Lens Material: Polycarbonate
    • Bezel Material: ABS
    • Maximum Panel Thickness: 3/8 in.(9.6mm)
    • Connectors: 6-Pin Deutsch DT06 Series
  • PVM Gauges
    • Operating Temperature: -40° to 185°F (-40° to 85°C)
    • Storage Temperature: -67° to 185°F (-55° to 85°C)
    • Environmental Sealed Enclosure:
      • Sealing: IP68, ±5PSI (±34.4 kPa)
      • Case and Clamp Material: Polyester (PBT)
      • Lens Material: Polycarbonate
      • Bezel Material: Polyester (PBT)
    • Dial: White numerals over black background
    • Return-to-Zero Needle Movement: Not available for PVM20models
    • Indicating Pointer: Stepper motor operation with 270° sweep
    • Gage Accuracy: Better than ±1.0% of scale
    • Maximum Panel Thickness: 3/8 in. (9.6 mm)
    • Connectors:
      • Amp Mini Universal Mate-N-Lok
      • Amp Plug P/N: 172338-1
      • Amp Socket P/N: 171639-1
    • Shipping Weight: 1 lb. (450 g)
    • Shipping Dimensions: 6 x 6 x 6 in. (153 x 153 x 153 mm)
    • PV101 Compatibility
      • Maximum supported: 5 PVM gages
      • Maximum distance to last gage: 8.5 meters
      • Power Supply Input Voltage: 5V (4.5-5, 5.5 VDC minimum &maximum voltage)
      • Power Supply Operating Current (@ 5 VDC): PVM20, PVM35:18 mA minimum; 80 mA maximum
      • Backlight Maximum Current: 60 mA
      • Input: RS485 MODBUS RTU data
      • Output: Analog readout

WARNING: This product may expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information about California Propsition 65, go to www.P65Warnings.ca.gov or visit our California Proposition 65 page.

Literature Drawer:

Additional product documentation can be found on our product support website or by clicking the Help Center button above.

See sales bulletin for ordering instructions. All configurations may not be available. Call your sales representative or Enovation Controls for more information.
