Ready to Run Panels for Isuzu® Engines

Get running in minutes with Murphy’s Ready To Run Panels for ISUZU Engines.

The panels have everything you need in one plug-and-play solution. Match your needs with the best option whether you need engine monitoring or a more sophisticated full engine control system. With several levels of panel options, it will be easy to find the solution right for you.

The Ready to Run Panels are engineered to manufacturers’ requirements and work out of the box with minimal set-up time. These panels put control at your fingertips allowing operators to monitor and change settings easily in the field.

Supported Engines:

  • FT4 4LE2
  • FT4 4JJ1T
Ready to Run Panels for Isuzu® Engines

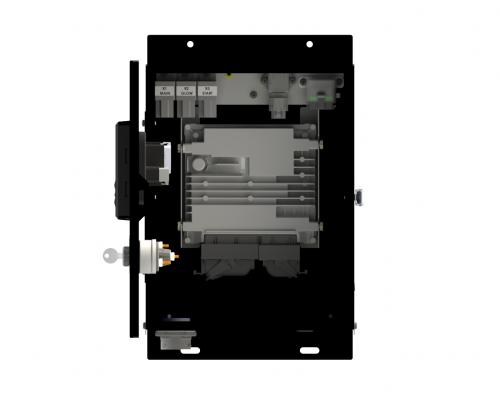

Panel Interior View

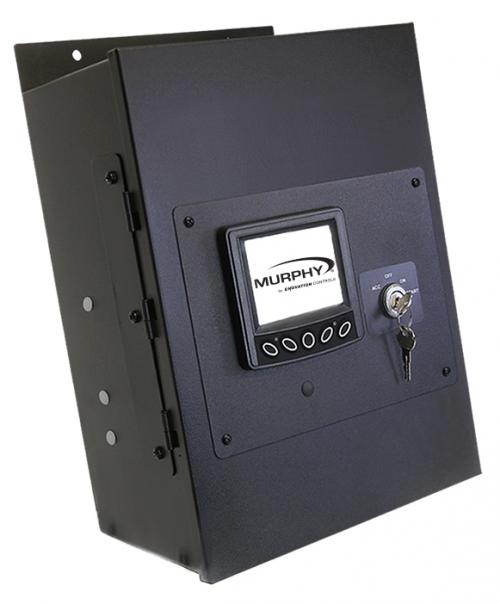

MLC380 panel configured for ISUZU engines

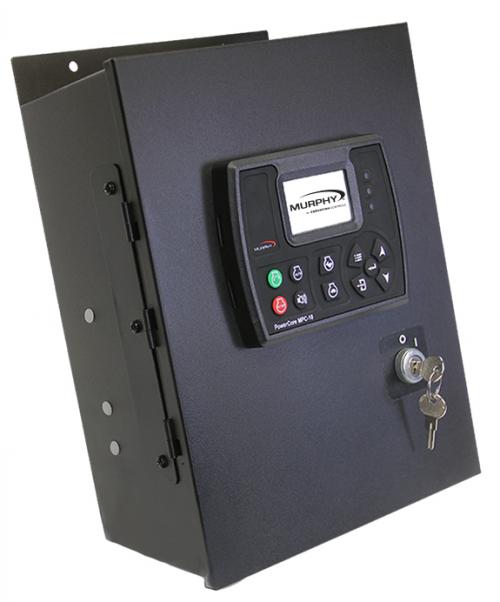

ML1000 panel configured for ISUZU engines

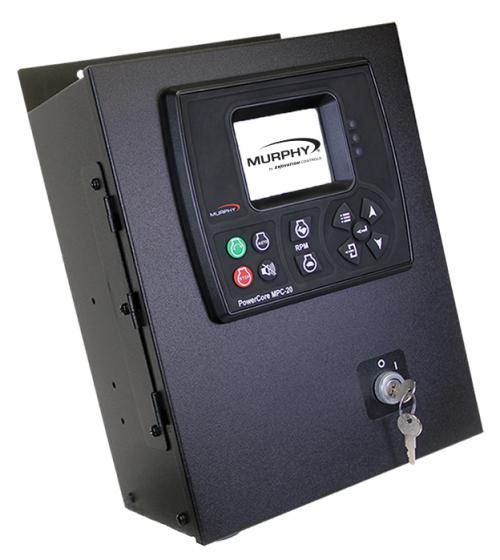

ML2000 panel configured for ISUZU enginesML2000 panel configured for ISUZU engines
Specifications Downloads How To Order
X

PowerView® MLC380:

  • Display:  3.8-inch (97 mm) QVGA monochrome transflective LCD; 320 x 240 pixels
  • Keys: 5 tactile push buttons
  • LEDs:  red, shutdown; amber, warning
  • Start Type:  Manual Start
  • Throttle Type:  Manual

PowerCore® ML1000:

  • Display:  2.7-inch (68 mm) WQVGA monochrome HR-TFT; 400 x 240 pixels
  • Keys: 11 tactile feedback buttons
  • LEDs:  red, shutdown; amber, warning; green, auto mode or running loaded state
  • Start Type:  Manual and Auto Start
  • ThrottleType:  Manual and Auto Throttling

PowerCore® ML2000:

  • Display:   3.8-inch (97 mm) QVGA monochrome transflective LCD; 320 x 240 pixels
  • Keys:  11 tactile feedback buttons
  • LEDs:  red, shutdown; amber, warning; green, auto mode
  • Start Type:  Manual and Auto Start
  • Throttle Type:  Manual and Auto Throttling

 WARNING: This product may expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information about California Propsition 65, go to www.P65Warnings.ca.gov or visit our California Proposition 65 page.

Additional product documentation can be found on our product support website or by clicking the Help Center button above.

Part Number Model/Description Notes
32090053 ML380-4LE2-FT4 For 4LE2 Engines
40090054 ML1000-4LE2-FT4 For 4LE2 Engines
40090059 ML1000-4LE2-FT4-Door Option* For 4LE2 Engines
40090050 ML2000-4LE2-FT4 For 4LE2 Engines
40090058 ML2000-4LE2-FT4-Door Option* For 4LE2 Engines
32090058 ML380-4JJIT-FT4 For 4JJIT Engines
40090055 ML1000-4JJ1T-FT4 For 4JJIT Engines
40090061 ML1000-4JJ1T-FT4-Door Option* For 4JJIT Engines
40090053 ML2000-4JJ1T-FT4 For 4JJIT Engines
40090062 ML2000-4JJ1T-FT4-Door Option* For 4JJIT Engines
40000619 I/O Whip harness for ML1000 panel 10' long, 31 position
40000618 I/O Whip harness for ML2000 panel 10' long, 31 position
65090020 Potentiometer kit (adjustment knob for speed setup limit) ML380 only
78700046 I/O connector kit 31 position
32090057 Remote panel for ML380 Uses PV380 controller
78001143 Extension harness for 32090057 ML380 remote panel 20' long

*Must purchase door option door needed. No Kit Option available.
