Ready to Run Panels for Doosan® Engines

Get running in minutes with Murphy’s Ready To Run Panels for Doosan Engines.

The panels have everything you need in one plug-and-play solution. Match your needs with the best option whether you need engine monitoring or a more sophisticated full engine control system. With several levels of panel options, it will be easy to find the solution right for you.

The Ready to Run Panels are engineered to manufacturers’ requirements and work out of the box with minimal set-up time. These panels put control at your fingertips allowing operators to monitor and change settings easily in the field.

Supported Engines:

  • FT4 D10 – 4500
  • FT4 D10 – 4800
  • FT4 D18
  • FT4 D24
  • FT4 D34
  • FT4 D34 SCR
Ready to Run Panels for Doosan® Engines

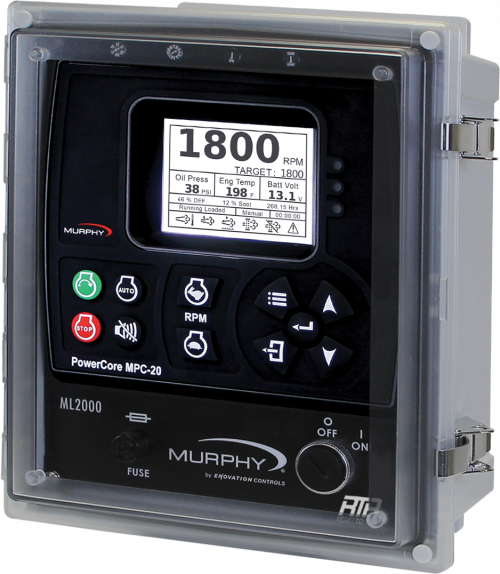

ML2000 panel configured for Doosan engines
ML1000 panel configured for Doosan engines
TEC-10 panel configured for Doosan engines

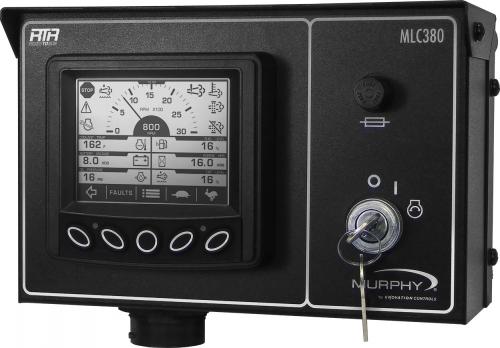

MLC380 panel configured for Doosan engines
  • CE
Specifications Downloads How To Order
X

PowerView® MLC380:

  • Display:  3.8-inch (97 mm) QVGA monochrome transflective LCD; 320 x 240 pixels
  • Keys: 5 tactile push buttons
  • LEDs:  red, shutdown; amber, warning
  • Start Type:  Manual Start
  • Throttle Type:  Manual

PowerCore® TEC-10:

  • Display:  2.7-inch (68 mm) WQVGA monochrome HR-TFT; 400 x 240 pixels
  • Keys: 11 tactile feedback buttons
  • LEDs:  red, shutdown; amber, warning; green, auto mode or running loaded state
  • Start Type:  Manual and Auto Start
  • Throttle Type:  Manual and Auto Throttling

PowerCore® ML1000:

  • Display:  2.7-inch (68 mm) WQVGA monochrome HR-TFT; 400 x 240 pixels
  • Keys: 11 tactile feedback buttons
  • LEDs:  red, shutdown; amber, warning; green, auto mode or running loaded state
  • Start Type:  Manual and Auto Start
  • ThrottleType:  Manual and Auto Throttling

PowerCore® ML2000:

  • Display:   3.8-inch (97 mm) QVGA monochrome transflective LCD; 320 x 240 pixels
  • Keys:  11 tactile feedback buttons
  • LEDs:  red, shutdown; amber, warning; green, auto mode
  • Start Type:  Manual and Auto Start
  • Throttle Type:  Manual and Auto Throttling

 WARNING: This product may expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information about California Propsition 65, go to www.P65Warnings.ca.gov or visit our California Proposition 65 page.

Additional product documentation can be found on our product support website or by clicking the Help Center button above.

Part Number Model/Description Notes
32090059 MLC380-Doosan STD, G2 Engines Panel for D18/D24/D34 Engines
40090066 ML1000-4X, RTR Doosan, G2 Engines Panel for D18/D24/D34 Engines
40090067 ML2000-4X, Doosan STD, G2 Engines Panel for D18/D24/D34 Engines
40090073 TEC-10, Doosan RTR Controller Panel for D18/D24/D34 Engines
32000197 MIH-DO-56P-T4F-D18/D24 Engine Harness for D18/D24 Engines
32000173 MIH-DO-56P-T4F-D34-6 Engine Harness for D34 LHP Engines
32000201 MIH-DO-56P-T4F-D34SCR-6 Engine Harness for D34 SCR Engines
32000220 HARNESS, W/PV380-D10-4800 Comes w/ PV380, ON/OFF switch, engine harness, ECU bracket, relays (D10 Engines only)
32000223 HARNESS, W/PV380-D10-4800 Comes w/ PV380, ON/OFF switch, engine harness, ECU bracket, relays (D10 Engines only)
78001276 D10 Enclosure Kit to mount PV380 and Toggle Kit mounts PV380, On/Off Switch to ECU/Relay, Bracket supplied with Harness
78001180 I/O Harness, MLC380, Doosan RTR I/O Harness for MLC380, 10 Feet
40000565 I/O Harness, ML2000 I/O Harness for ML2000, 10 Feet
78700046 31 Position Connector Kit (I/O) I/O Connector Kit
05705669 ES2F-Fuel Sender Fuel Level Sender
