The MVP Series is a line of proportional valve controllers each housed in an 18mm DIN connector body.
Several versions are available for open and closed loop applications. Bright LED indicators provide an overview of the operating status. System configuration is accomplished through a clip-on infrared adapter, without removing or opening the connector body. All settings are stored in permanent memory within each unit. Each MVP controller is prewired and permanently sealed.
| Item | MVP-C |
| Supply Voltage | 9 to 32VDC |
| Supply Current | Isol + 20mA |

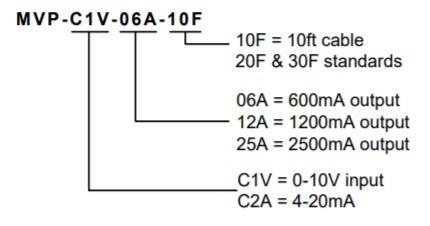

| Output Current | “-06A” 600mA or “-12A” 1.2A or “-25A” 2.5A Maximum |
| Solenoid Resistance | 2 Ohms Minimum |
| Reference Voltages | +5V @ 2mA |
| Dither Settings | Off, 30, 33, 38, 43, 50, 60, 75, 100, 150, 300 Hz |
| Ramp Time | 0.0 to 120.0 Seconds |
| Analog Input Range | “C1V” 0 to 10V, “C2A” 0 to 20mA |
| Analog Input Impedance | 20 K Ohms |
| Operating Temperature Range | -40 to +85 Deg. C |
| Enclosure | Glass filled Polyamide |
| IP Rating | IP67 |
