PowerView® 500

The Murphy PowerView® 500 packs power and versatility in an ultra-small footprint.

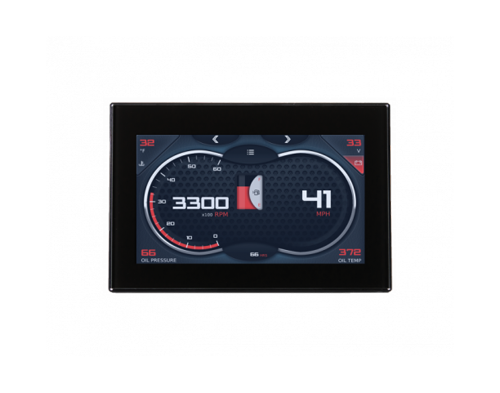

The PowerView 500 is a full-color configurable display that integrates vital engine, transmission and diagnostic information into an easy-to-read operator interface. The PV500 is easily viewed in full sunlight and contains an optically bonded LCD inside its IP67-rated case to keep it safe in all weather environments. The PV500’s high-speed processor allows it toboots quickly and render high-quality graphics and animations. Its available glove-friendly touchscreen and rugged design make it a perfect solution for all types of environments and applications.

PV500 is programmable exclusively with PowerVision Configuration Studio® (See How to Order tab for details). Graphic interface not included, custom programming required.

Murphy’s PowerView 500
Specifications Downloads How To Order
X
  • Computing
    • Processor: Renesas® RZ/G1e Arm® Cortex®-A7 dual-core processor @ 1.0 GHz (32-bit)
    • Software: QNX® Realtime Operating System
    • Storage: 8 GB flash memory
    • RAM: 256 MB DDR3-SDRAM
  • Display
    • Display Area: 5-inch (108 mm [H] x 64.8 mm [V])
    • Type: LVDS TFT LCD with LED backlight, 24-bit color
    • Resolution: 800 x 480 (WVGA)
    • Contrast Ratio: Typ. 1000:1
    • Brightness: 900 cd/m² (900 nits)
    • Surface: Anti-glare
    • Touch Panel: Projected capacitive (PCAP) with glove touch
  • Hardware
    • Real Time Clock: Li-Ion battery backup (Typ. lifespan 10 years), non-rechargeable, non-replaceable
    • Connectors: (4) 6-position DEUTSCH® style DT series
    • Video Inputs: (2) NTSC/PAL (single channel viewable)
  • Communication
    • CAN: (2) CAN 2.0B according to ISO-11898-2; J1939 and proprietary messaging
    • Serial: (1) RS-485 MODBUS Master/Slave Port
    • USB: USB 2.0 full speed host
  • Electrical
    • Operating Voltage: 6 – 36 VDC, reverse polarity protected
      • Min current draw @ 24V: 0.202A
      • Max current draw @ 24V: 0.297A
      • Min current draw @ 12V: 0.318A
      • Max current draw @ 12V: 0.438A
    • Inputs:
      • (1) Analog 0–5 VDC, 4-20 mA, resistive, 10-bit resolution
      • (1) Discrete digital, active-high
    • Outputs:
      • (2) 500 mA switched low-side
  • Environmental
    • Operating Temperature: -30°C to +85°C (-22°F to +185°F)
    • Storage Temperature: -40°C to +85°C (-40°F to +185°F)
    • Protection: IP66 and IP67, front and back, for outdoor use
    • Vibration: Random vibration 8.17 Grms (5–2000Hz), 3 axes
    • Shock: ±50G in 3 axes
    • EMC/EMI: SAE J1113, ISO 13766, CE per 2014/30/EU

 WARNING: This product may expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information about California Propsition 65, go to www.P65Warnings.ca.gov or visit our California Proposition 65 page.

Additional product documentation can be found on our product support website or by clicking the Help Center button above.

Part Number Model/Description Notes
78700664 PV500-LT Display
78090104 Programming Kit Accessories
78051705 Kit, Mounting Bracket, PV500 Accessories
78000688 Wire Harness, USB Adaptor Accessories

Programming the PV500 requires version 4.0 or newer of PowerVision Configuration Studio. Downloads of the current version of PowerVision Configuration Studio and Toolkit (including 4.0 and all future releases) are available on SPARK Software Manager to licensed users. To purchase a license for PowerVision Configuration Studio on SPARK Software manager, contact your sales representative or email sales@enovationcontrols.com.
