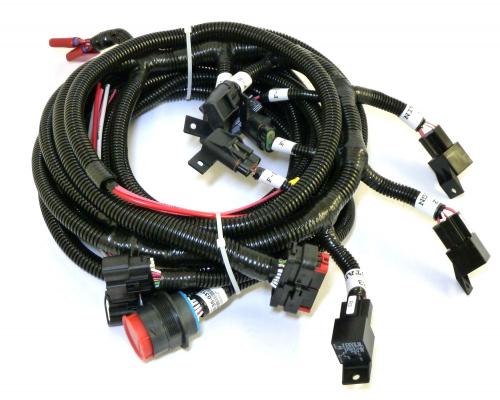

Murphy Industrial Harnesses bring universal connection to any engine.
Murphy Industrial Harnesses are built to the specifications of each engine manufacturer and customer. When requesting the MIH Harness, specific information will be obtained so that the correct harness may be built for your engine.
Below is a list of Murphy Industrial Harnesses (MIH) for a variety of engines. If you have any questions about a specific harness or availability, contact your sales representative.
| Part Number | Description | Notes |
|---|---|---|
| Caterpillar Engine | ||
| 32000137 | MIH-CA-40P-T2-ADEM3-6 | Tier 2, 40 pin ECU connection |
| 32000138 | MIH-CA-64P-T3-A4E2-6 | Tier 3, C4.4 & 6.6, 64 pin ECU connection |
| 32000171 | MIH-CA-70P-T3-A4-6 | Tier 3, All C series except 4.4 and 6.6 |
| 32000160 | MIH-CA-70P-IT4-A4E4-6 | iT4, CAT C18-32 |
| 32000148 | MIH-CA-70P-IT4-A4E4-6-12 VDC | iT4, 12 VDC, C9.3, C13, C15, C18 (<750 hp) |
| 32000150 | MIH-CA-70P-IT4-A4E4-6-24 VDC | iT4, 24 VDC, C9.3, C13, C15, C18 (<750 hp) |
| 32000159 | MIH-CA-70P-IT4-C4.4-12 VDC | iT4, CAT4.4 |
| 32000151 | MIH-CA-70P-IT4-C7.1-6-12 VDC | iT4, CAT7.1 |
| 32000170 | MIH-PK-94P-IT4/T4-C3.4/P854F-E34T | IT4/FT4, C3.4 without DEF/SCR (Supplied with IOPU ADAPTER (21 pos to 12 pos)) |
| 32000155 | MIH-CA-86P-T4-C4.4-6 | FT4, C4.4 (to be used only on engine without customer interface connector, connects directly to ECU) |
| 32000189 | MIH-PK/CA-70P-T4F-C4.4-W/CIC-6 | FT4, C4.4, To 70 pin coustomer interface connector |
| 32000188 | MIH-CA-70P-FT4-C7.1-6 | FT4, C7.1, To 70 pin coustomer interface connector |
| 32000167 | MIH-CA-70P-T4-C9.3-C18, 24V | FT4, 24 Volt Only, C9.3-18 |
| 32000215 | MIH-PK/CA-58P-FT4-404FE/C2.2 | FT4, C2.2-Engine harness for engine without ENG MFG Umbilical harnesses (connects directly to ECU) |
| 32000224 | MIH-PK/CA-94P-FT4-C3.4/P854F | FT4/Stage V, C3.4 with DEF/SCR |
| 32000202 | MIH-CA-MECH-C2.2-15 | Mechanical, C2.2 engine. Works with only ML1000, ML2000 & TEC 10 (Check with engineering) |
| 32000222 | MIH-CA-MECH-C4.4,WIRE HARNESS | Mechanical, C2.2 engine. Works with only ML1000, ML2000 & TEC 10 (Check with engineering) |
| 32000227 | MIH-CAT-70P-T4F-C9.3B,24V | FT4, 24VDC, C9.3B |
| 32000225 | MIH-CA-70P-T4F-C9.3-C18,12V | FT4, 12 VDC, C9.3-18 |
| 32000190 | MIH to IOPU Jumper Harness | MIH to IOPU Jumper Harness (21 pos to 12 pos connector) |
| Perkins Engine | ||
| 32000138 | MIH-CA-64P-T3-A4E2-6 | Tier 3, 1204 & 1206, 64 pin ECU connection |
| 32000159 | MIH-CA-70P-IT4-C4.4-12 VDC | iT4, 1204 |
| 32000151 | MIH-CA-70P-IT4-C7.1-6-12 VDC | iT4, 1206 |
| 32000155 | MIH-CA-86P-T4-C4.4-6 | FT4, 1204 (to be used only on engine without customer interface connector, connects directly to ECU) |
| 32000189 | MIH-PK/CA-70P-T4F-C4.4-W/CIC-6 | FT4, 1204, To 70 pin coustomer interface connector |
| 32000188 | MIH-CA-70P-FT4-C7.1-6 | FT4, 1206, To 70 pin coustomer interface connector |
| 32000170 | MIH-PK-94P-IT4/T4-C3.4/P854F-E34T | IT4/FT4 P854F-E34T without DEF/SCR (Supplied with IOPU adapter (21 pos to 12 pos)) |
| 32000190 | MIH to IOPU Jumper Harness | MIH to IOPU Jumper Harness |
| Cummins Engines | ||
| 32000149 | MIH-CU-50P-T2-CM570-12 | Tier 2, QSM/QSX |
| 32000134 | MIH-CU-50P-T2-CM570-6 | Tier 2, QSM/QSX |
| 32000195 | MIH-CU-60P-T3-CM2150C-6 | Tier 3, QSB 3.3 |
| 32000147 | MIH-CU-50P-T3-CM850-12 | Tier 3, QSB, QSC, QSL |
| 32000152 | MIH-CU-60P-IT4-CM2250-6 | Tier 3, QSB6.7, QSL9, QSX11.9, QSX15 |
| Detroit Diesel Engine | ||
| 32000168 | MIH-DD-30P-T3-DDECIII/DDECIV-6 | Tier 3, DDEC III/IV ECM |
| 32000139 | MIH-DD-68P-T3-DDECV-6 | Tier 3, 50/60 Series, DDEC V ECM |
| Doosan Engines | ||
| 32000197 | MIH-DO-56P-T4F-D18/D24 | FT4, D18/D24 Engines (for Delphi ECU) |
| 32000173 | MIH-DO-56P-T4F-D34-6 | FT4, D34 LHP Engines (for Delphi ECU) |
| 32000201 | MIH-JCB-62P-T3-DCM3.3-6, | FT4, D34 SCR Engines (for Delphi ECU) |
| 32000223 | HARNESS, W/PV380-D10-4800 | D10-4800 kit Supplied with PV380, ON/OFF switch, engine harness, ECU bracket, relays |
| 32000220 | HARNESS, W/PV380-D10-4500 | D10-4500 kit Supplied with PV380, ON/OFF switch, engine harness, ECU bracket, relays |
| JCB Engine | ||
| 32000196 | MIH-JCB-29P-FT4-IPU | FT4 Industrial Power Unit Engines |
| 32000154 | MIH-JCB-62P-T4-DCM3.3-6 | iT4 and FT4 |
| 32090037 | MIH-JCB-62P-T4-DCM3.3-6 | Tier 3 JCB engine harness |
| PSI Engines | ||
| 32000194 | MIH-PSI-16P-GAS-4 | NG, GM engine with EControls ECU |
| Scania Engines | ||
| 32000132 | MIH-SCANIA-8P-FT4-EMS-XPI-6 | FT4, 24VDC, Scania DC-9/DC-13/DC-16 |
| Volvo Engines | ||
| 32000200 | MIH-VO-8P-T4-6 | FT4, Volvo engine |
| WeiChai Engine | ||
| 32000229 | MIH-WEICHAI-16P-FT4-10′-WP4-13 | FT4, WP4/WP6/WP10/WP13 |
| FPT Engine | ||
| 32000212 | MIH-FPT-96P-FT4-6.7-6-24V | FT4, 24V (check with Engineering) |
| 32000216 | MIH-FPT-96P-FT4-6.7-6-12V | FT4, 12V (check with Engineering) |
| Hatz Engine | ||
| 32000198 | MIH-HATZ-32P-FT4-4H50-20, W/TSC1 only | FT4, This harness works only with panels/controllers that can perform throttle over CAN (TSC1) |
| All Engines – Extension Harnesses | ||
| 78001035 | MIH, Extension | Harness, 6-feet long |
| 78000294 | MIH, Extension | Harness, 12-feet long |
| 78000293 | MIH, Extension | Harness, 20-feet long |
Contact Murphy Industrial Panel Division for more information at 918-317-4100, or sales@enovationcontrols.com
