When your application demands high-current switching in harsh conditions, the HCPDM is up to the task. With flexible input configurations, intelligent diagnostics, and rugged construction, it’s designed to streamline complex control systems without compromising durability. Mount it close to your loads, reduce wiring, and gain full visibility into system performance. Whether you’re adding capacity or upgrading reliability, this module delivers power where it counts—and control when it matters.
total control.
BIG POWER.
NO LIMITS.
Smart power control designed for rugged machines and total system flexibility

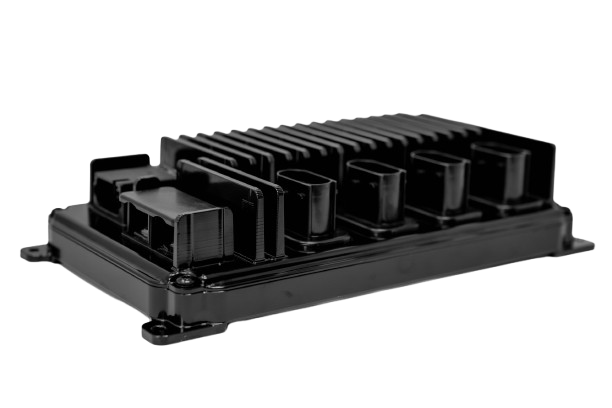

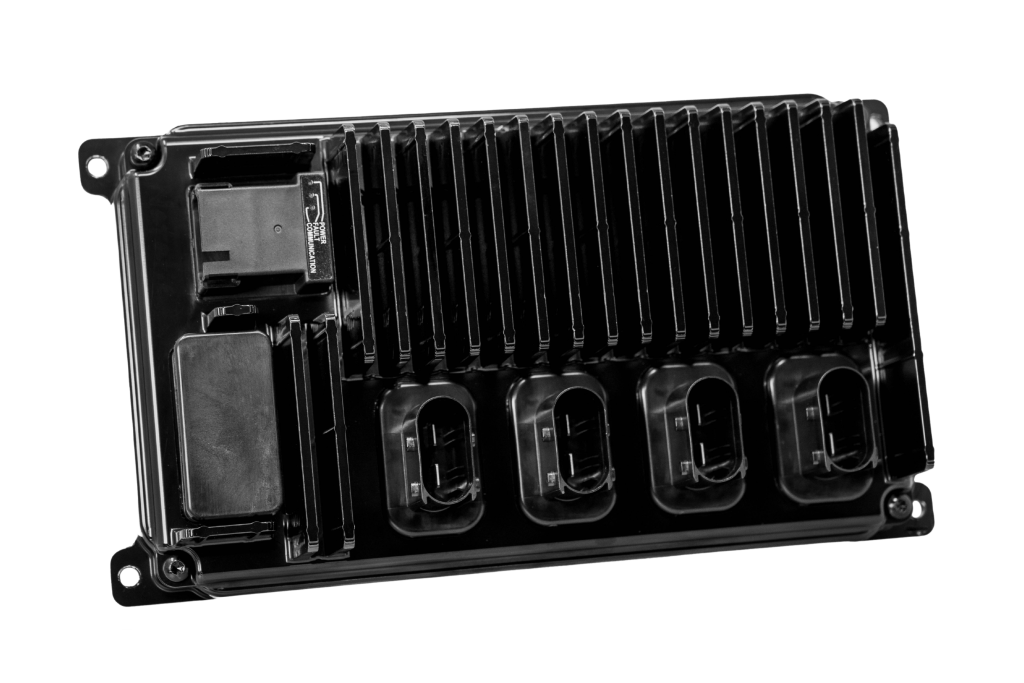

The High Current Power Distribution Module (HCPDM) gives you powerful, flexible control of high-current loads in rugged applications, with J1939 compatibility for seamless integration into CAN-based systems. Use it to expand your control network or simplify complex wiring.
Robust Output Control & Intelligent Diagnostics
With eight 40A outputs, two 100mA low-current outputs, and six configurable inputs, HCPDM offers reliable switching, onboard diagnostics, and current feedback with overcurrent protection, all housed in a sealed, IP69K-rated enclosure built for high heat and vibration.
Supports eight 40A outputs and two 100mA outputs with a total drive capability of 200A
Real-time feedback with configurable overcurrent protection and fault detection
Communicates over SAE J1939 with configurable I/O, expanding your vehicle or equipment network
IP67/IP69K-sealed housing withstands high shock, vibration, and extreme temperatures
Mounts close to load devices with Deutsch and AMP connectors
Easily integrates into both new and existing designs for greater flexibility in control expansion
